Description

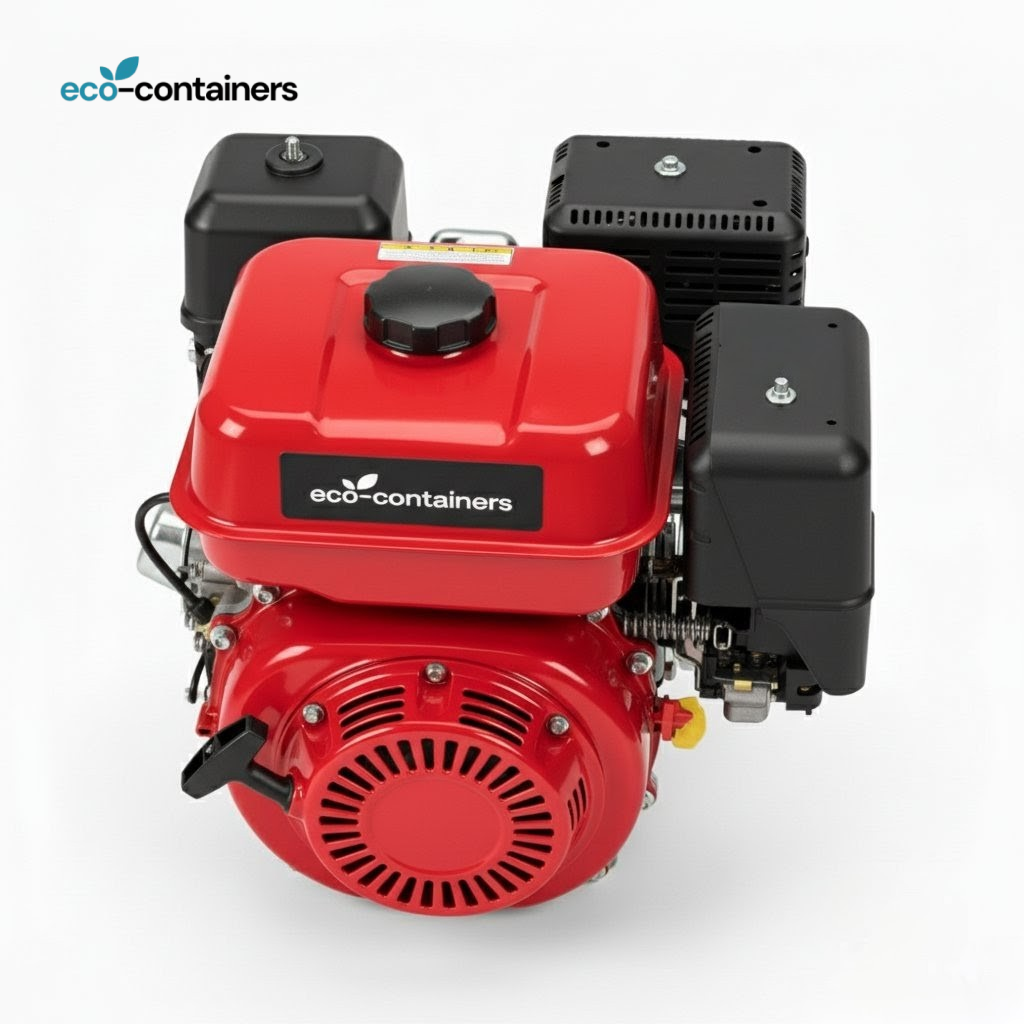

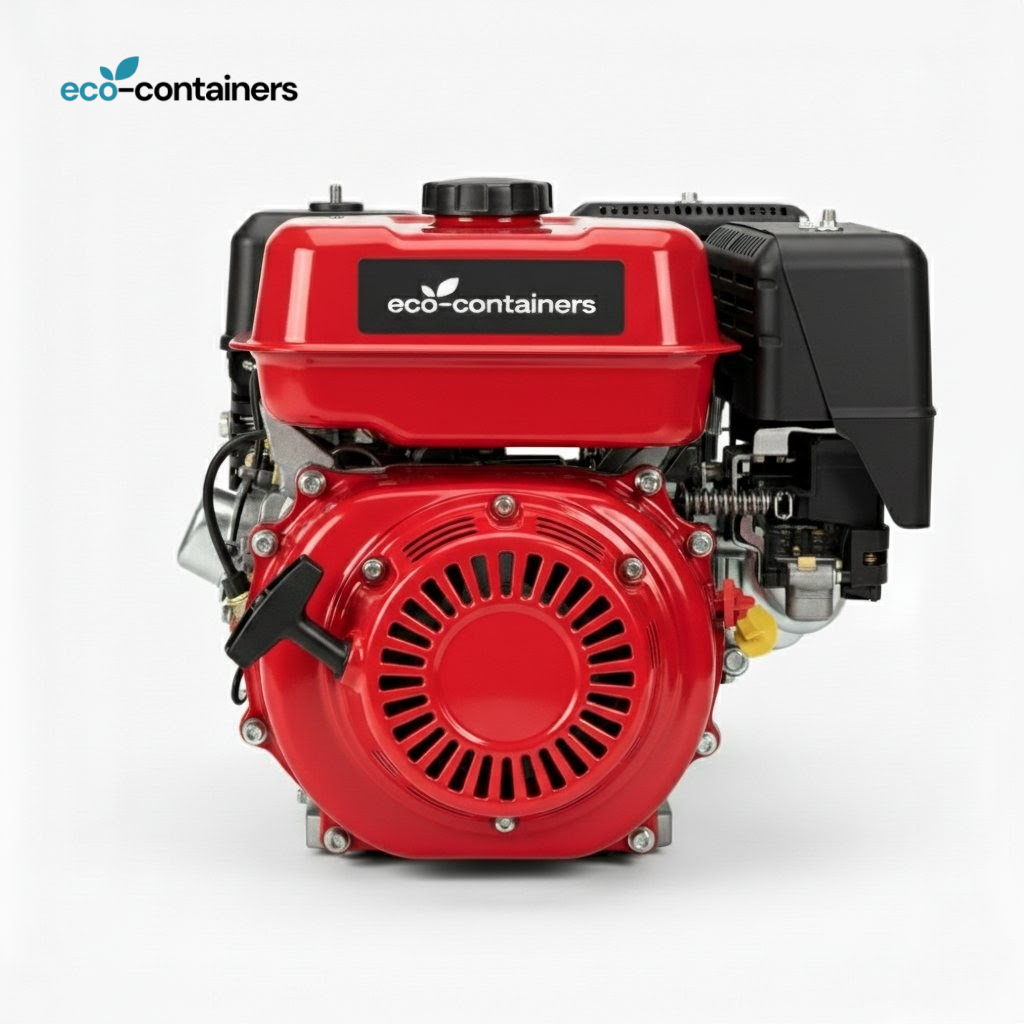

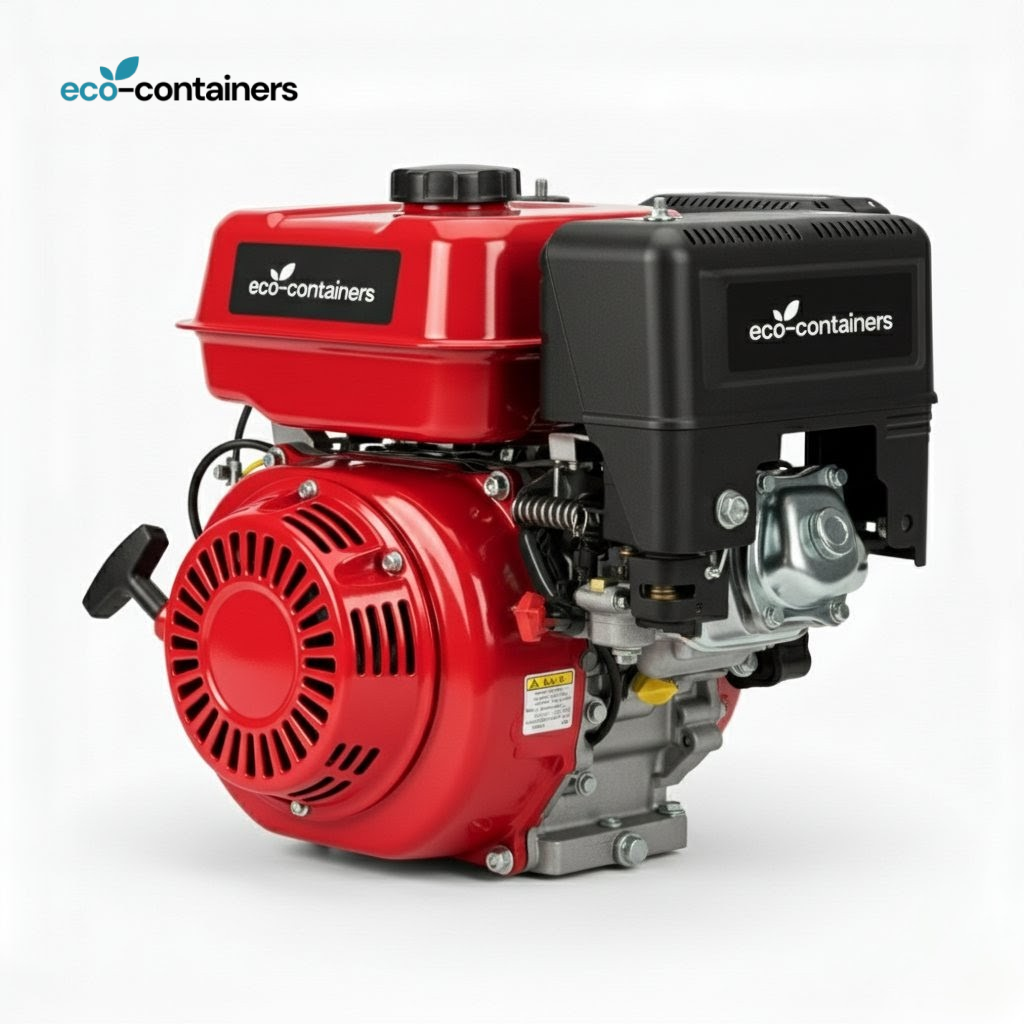

This is a horizontal-shaft, single-cylinder, 4-stroke, air-cooled utility engine.1 The images show the core structure, including the prominent recoil starter assembly, the flywheel fan housing (for air cooling), the oil fill cap, and the mounted carburetor. This engine class typically features a 2$196 \text{ cc}$ or 3$212 \text{ cc}$ displacement and is designed for an easy, manual recoil start.4 It is the industry standard replacement for many smaller motors.
Key Features
-
$6.5 \text{ HP}$ Output: Provides powerful and consistent torque for driving various mechanical applications.
-
$196 \text{ cc}$ Displacement (Typical): Offers a good balance between power and fuel consumption.
-
OHV Technology: Guarantees efficient combustion, leading to better performance, lower fuel consumption, and reduced noise.
-
Low Oil Shutoff Protection: (Highly typical for this model) Automatically shuts down the engine when oil levels are too low to prevent catastrophic damage.7
-
Durable Construction: Built with a cast iron cylinder sleeve for extended operational life.
-
Recoil Start: Simple and reliable manual starting mechanism.
Technical Specifications
| Feature | Detail (Accurate for eco-containers GE-650 Class) |
| Model | eco-containers GE-650 |
| Engine Type | Single-Cylinder, 4-Stroke, Air-Cooled, OHV |
| Max Horsepower | $6.5 \text{ HP}$ |
| Max Power Output | $\approx 4.8 \text{ kW}$ |
| Rated Power Output | $\approx 4.3 \text{ kW}$ |
| Displacement (CC) | $196 \text{ cc}$ (Common standard) |
| Fuel Type | Unleaded Gasoline |
| Fuel Tank Capacity | $\approx 3.6 \text{ L}$ (Typical accessory tank size) |
| Oil Capacity | $\approx 0.6 \text{ L}$ |
| Starting System | Recoil Start (Pull-Start) |
| Approx. Weight (Dry) | $15 \text{ kg} – 17 \text{ kg}$ (33 lbs – 37 lbs) |
| Shaft Diameter | Commonly $19.05 \text{ mm}$ (3/4 inch) |
Best Uses (As a Component)
-
Direct Replacement: Ideal replacement for worn-out engines on common equipment like generators, pressure washers, and tillers.
-
Powering Equipment: Used by manufacturers to power equipment such as small log splitters, plate compactors, water transfer pumps, and cement mixers.
-
Hobby/DIY Projects: Popular for use in go-karts, mini-bikes, and various customized machinery.
Best For
The eco-containers GE-650 is best for DIY mechanics, small equipment repair shops, and hobbyists looking for a highly versatile, reliable, and standardized replacement engine that offers a powerful $6.5 \text{ HP}$ output.
